SCADA SOFTWARE – SCADA SYSTEM
5.4.6(14/10/2016): Chiness language bug have been resolved.
5.4.4(20/05/2016): Some bugs have been resolved.
5.4.0(23/03/2016): Plc commonications and some bugs have been resolved. Emergency license, Login-Logoff with script, Ask confirmation feature for webserver was added.
5.3.6(24/12/2015): Invert function was added. Improved some function: Groupbox and Tabcontrol copy function, Drawing size control, Runtime zoom, Quick replace. Top Most function was added for screen properties.
5.3.5(30/11/2015): Quick Replace function was added for Screen Object.
5.3.4(10/1/2015): Some bugs have been resolved.
5.3.3(12/7/2015): Redundant fail count was added. Screen designer some function was added for multiple object select. Decimal place, Thousand separetor, Min/Max and Unit feature added for Textbox and Label. Scada screen zoom function with script was added.
5.3.2(5/6/2015): Webserver performance increase, Dynamic report function.
5.3.1(3/25/2015): Cumulative updates were made. Timestamp, Plc communication, Webserver, Label, Sql Server, Backup, Tag list, Eventview, Alarm, Alrarmview, Server & client, Redundant, e.t.c.
5.2.6(1/22/2015): Zoom feature: Scada page zoom feature was added with runtime. Scada object accessible through with script. All the features of the Scada objects can be controlled.
5.2.5(12/23/2014): Alarmview, Eventwiew, Recipeview: Adjustable font size was added.
5.2.4(10/29/2014): Webserver fature: Selectable navigation buttons was added, Also enabled in-page navigation buttons.
5.2.3(10/15/2014): SQL Server 2014 support was added.
5.2.2(09/29/2014): Schedule function was added.
5.2.1(08/27/2014): Webserver added the ability to control. Webserver Controllable Object: Button, Checkbox, Radio Button, Picturebox, SymbolFactory, Cutaway, Drawing, invisible Button, Textbox, Numericupdown, Horizantal Scrollbar, Vertical Scroolbar. Other object read only.
5.2.0(05/28/2014): Network information was added. Main menu button reorganized. Zoom function bug solved.
5.1.7(04/01/2014): New screen open method was added. Symbol Factory loading performance increased.
- Numericupdown Thousand Separator was added.
- 46 different type SQL query added for reporting tools.
- Print document function was update, Print screen command added.
- Plc communication error function added.
- Decimal place added for scale function.
- Alternative Ip address added for Redundant and all plc communication driver.
5.0.0(02/21/2013): Please visit our blog for more information. http://www.scadasoftware.net/wintr-scada-version-5-0-0-features/

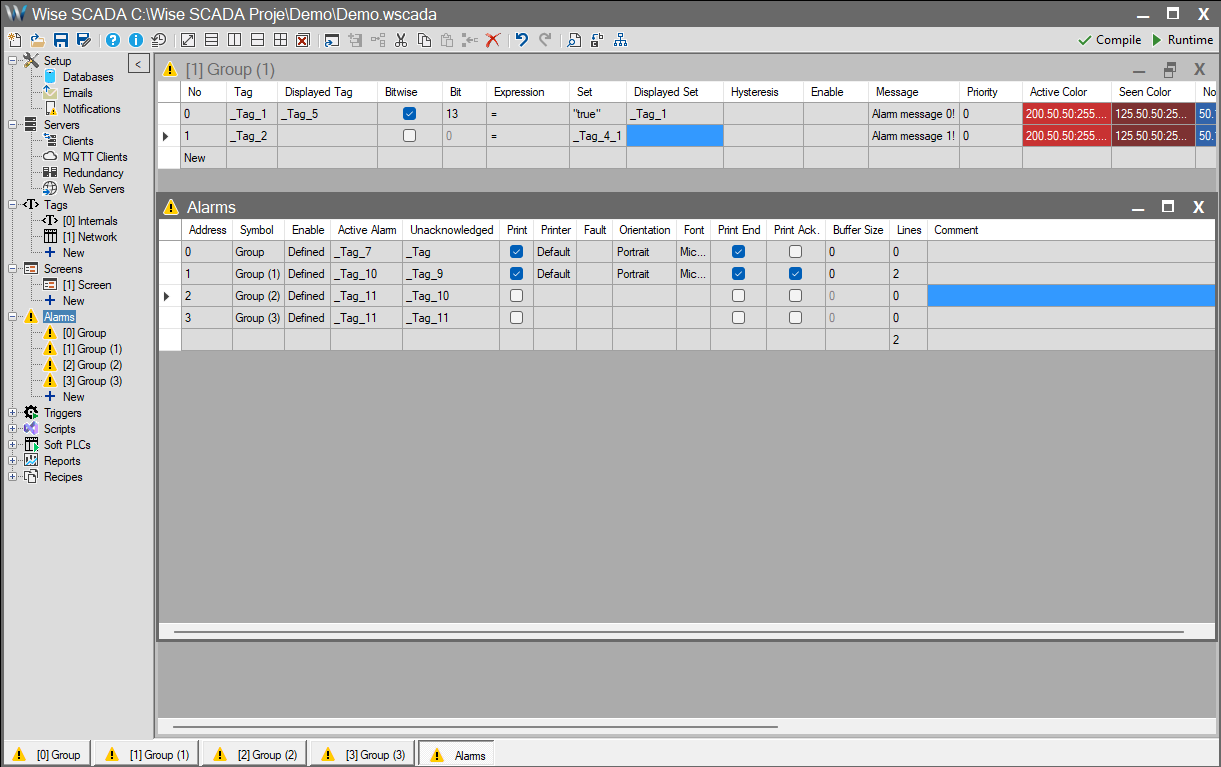

Alarms and Warnings can be defined for process values. When alarm or warning occurred, it can be monitored in the Screen real time and informed to E-Mail and SMS recipients.

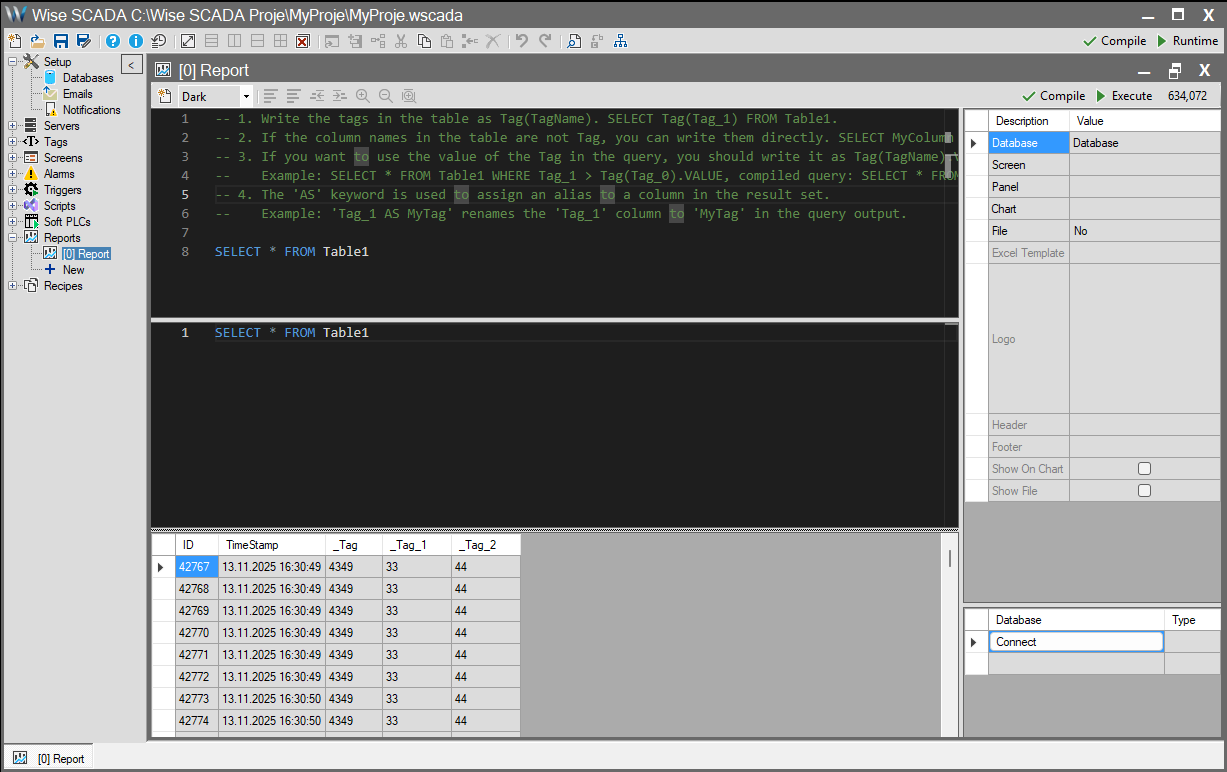

- Easily creates detailed Reports from historical datas and saves them in Excel or PDF format..
- With Recipe, previously saved values for the tags are send to the devices by one click.

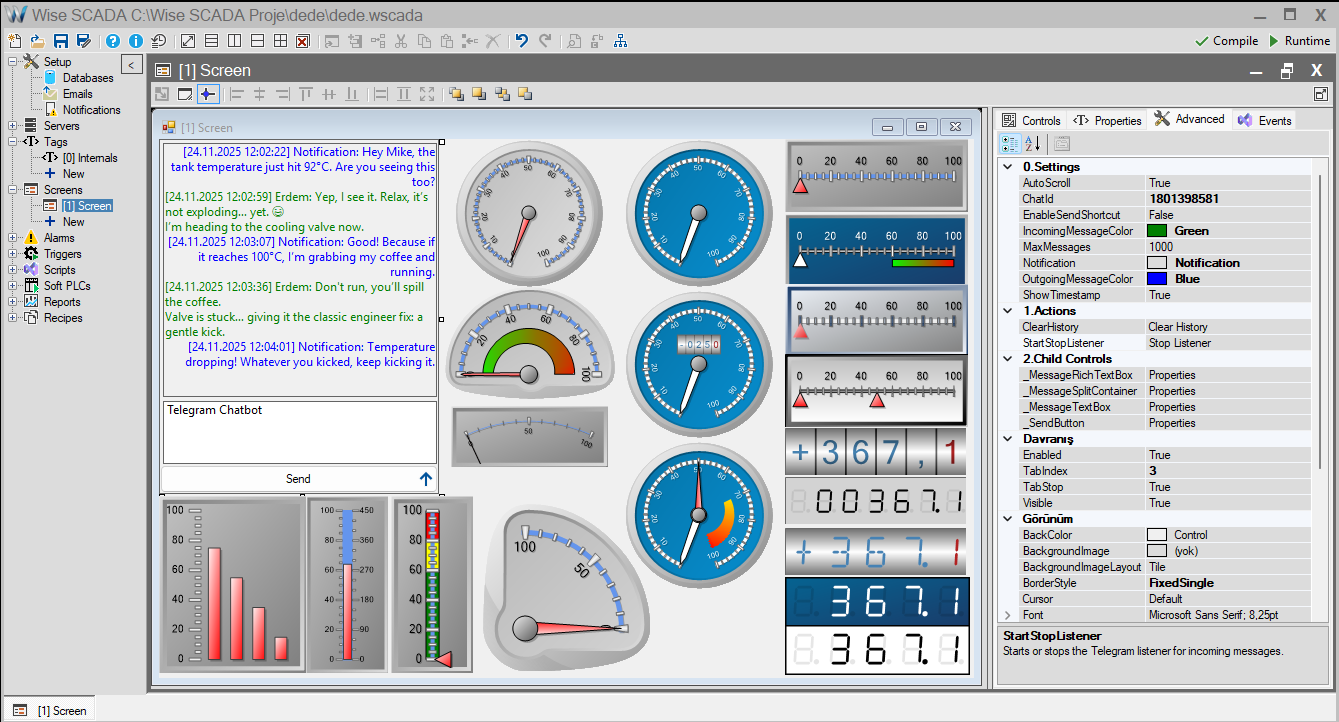

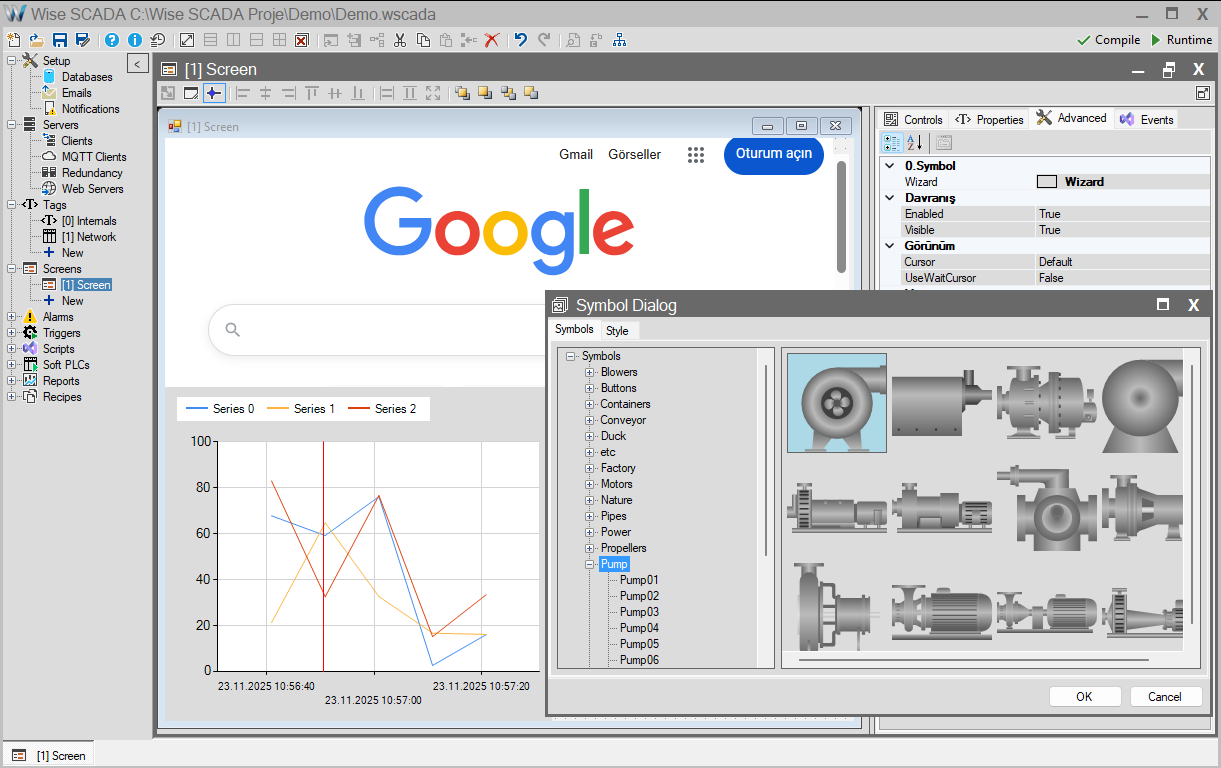

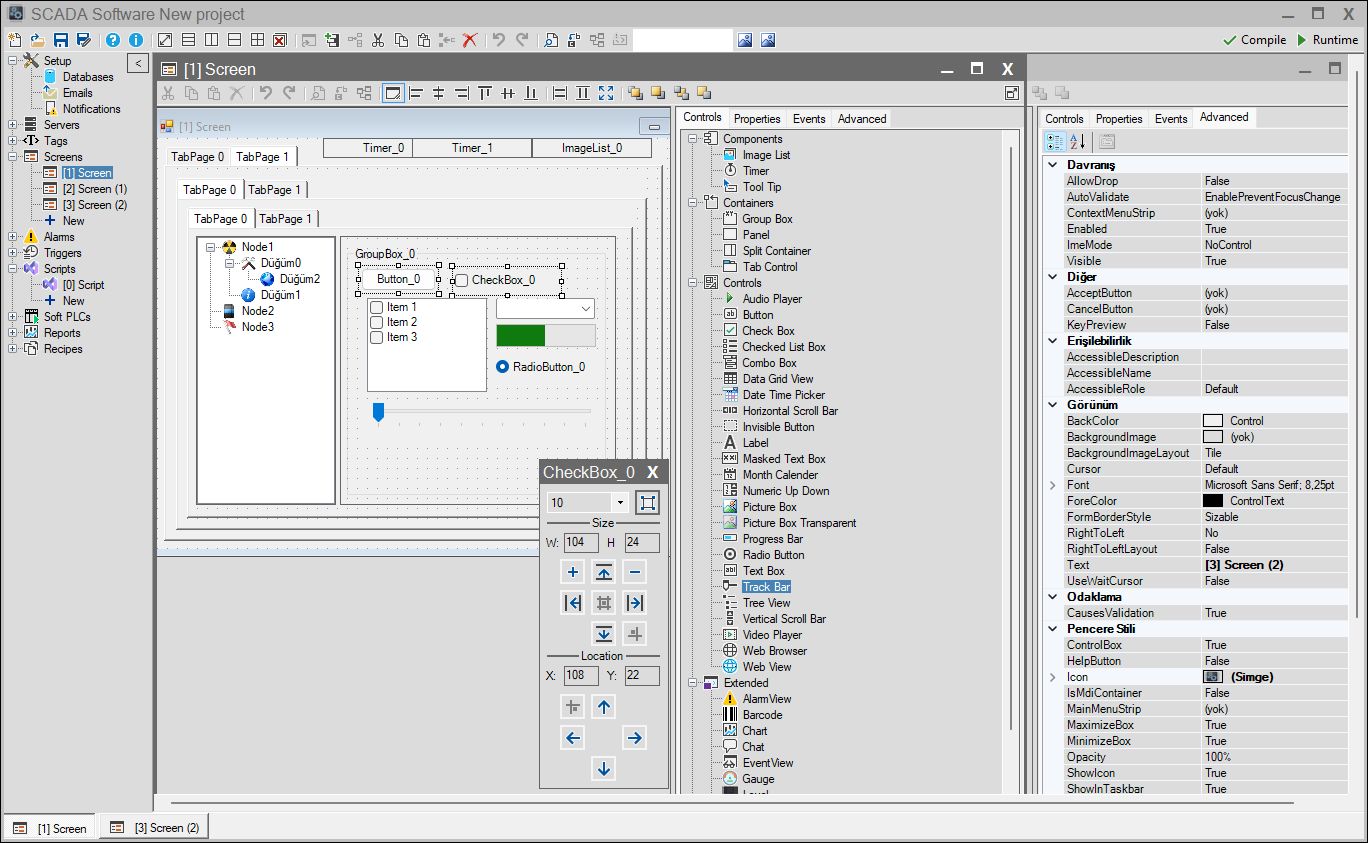

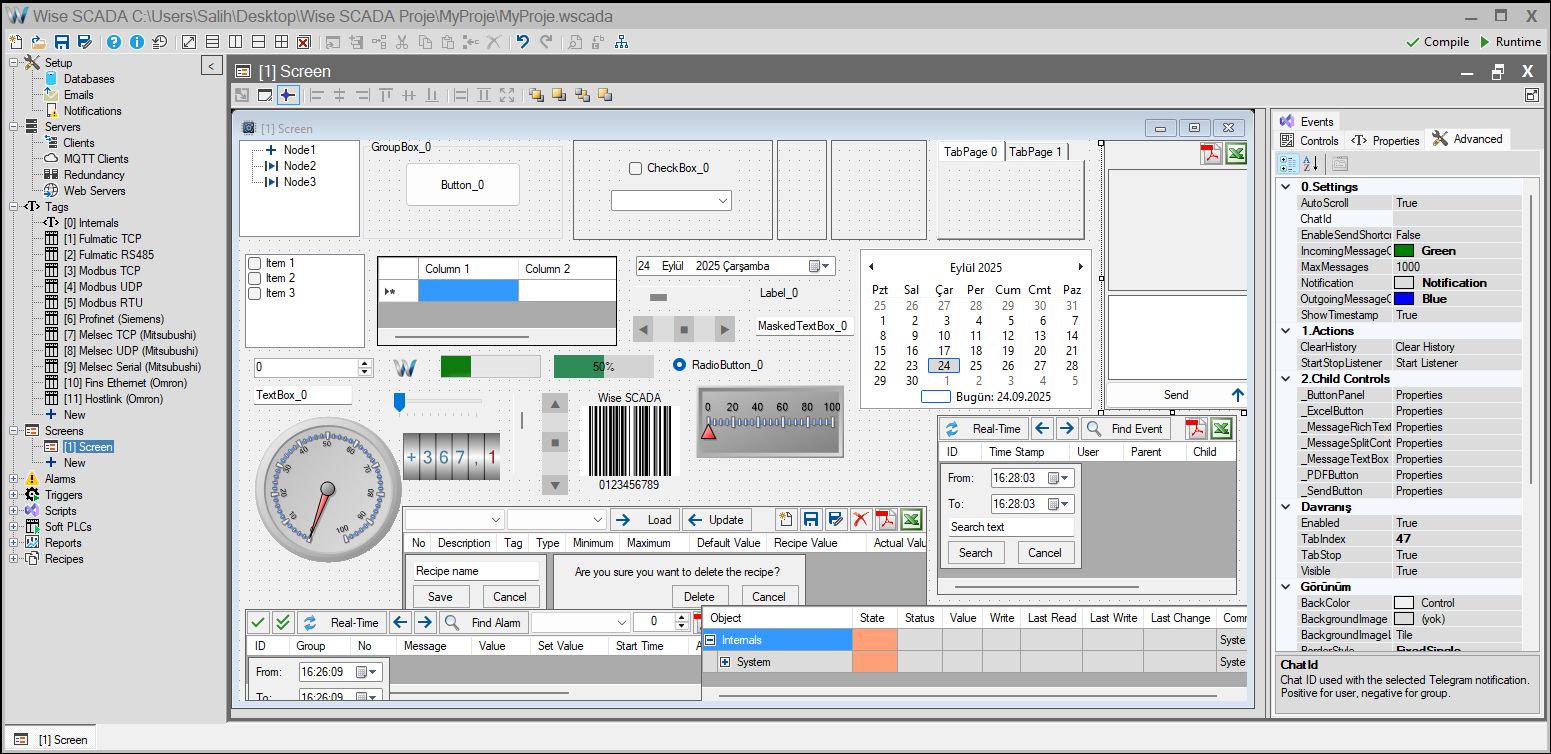

- For creating advanced Screen interfaces, WinTr contains; Symbol Factory software which contains 4000 industrial symbol in 60 category, Dundas’s elegant Chart(Real Time, Historical, Pie, Line, Bar, 3D) and Gauge(Circular, Numeric, Linear, Knob) objects,

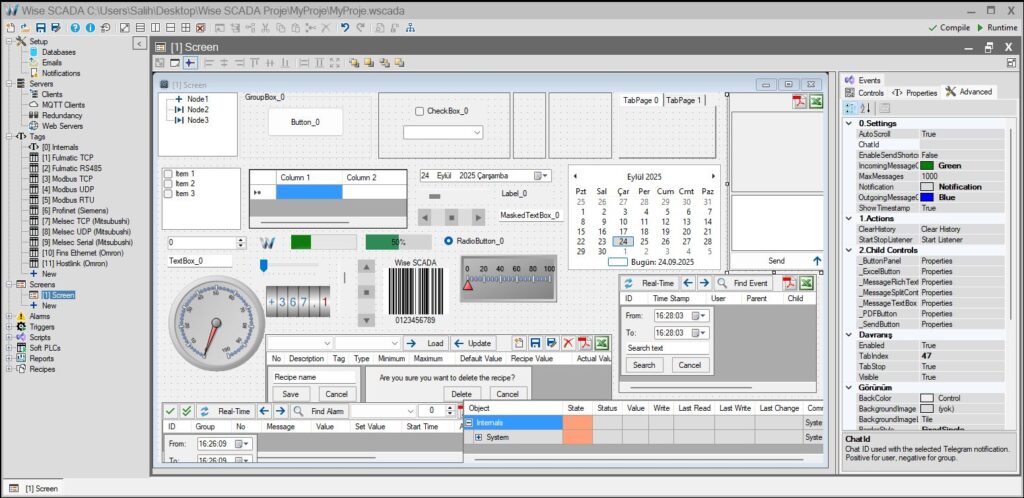

Microsoft .NET Framework’s Button, CheckBox, RadioButton, Combobox, NumericUpDown, Horizantal ScroollBar, Vertical ScrollBar, ProgressBar, Datagridview, DateTimePicker, TabControl, GroupBox, PictureBox, TextBox, Toolstrip objects.

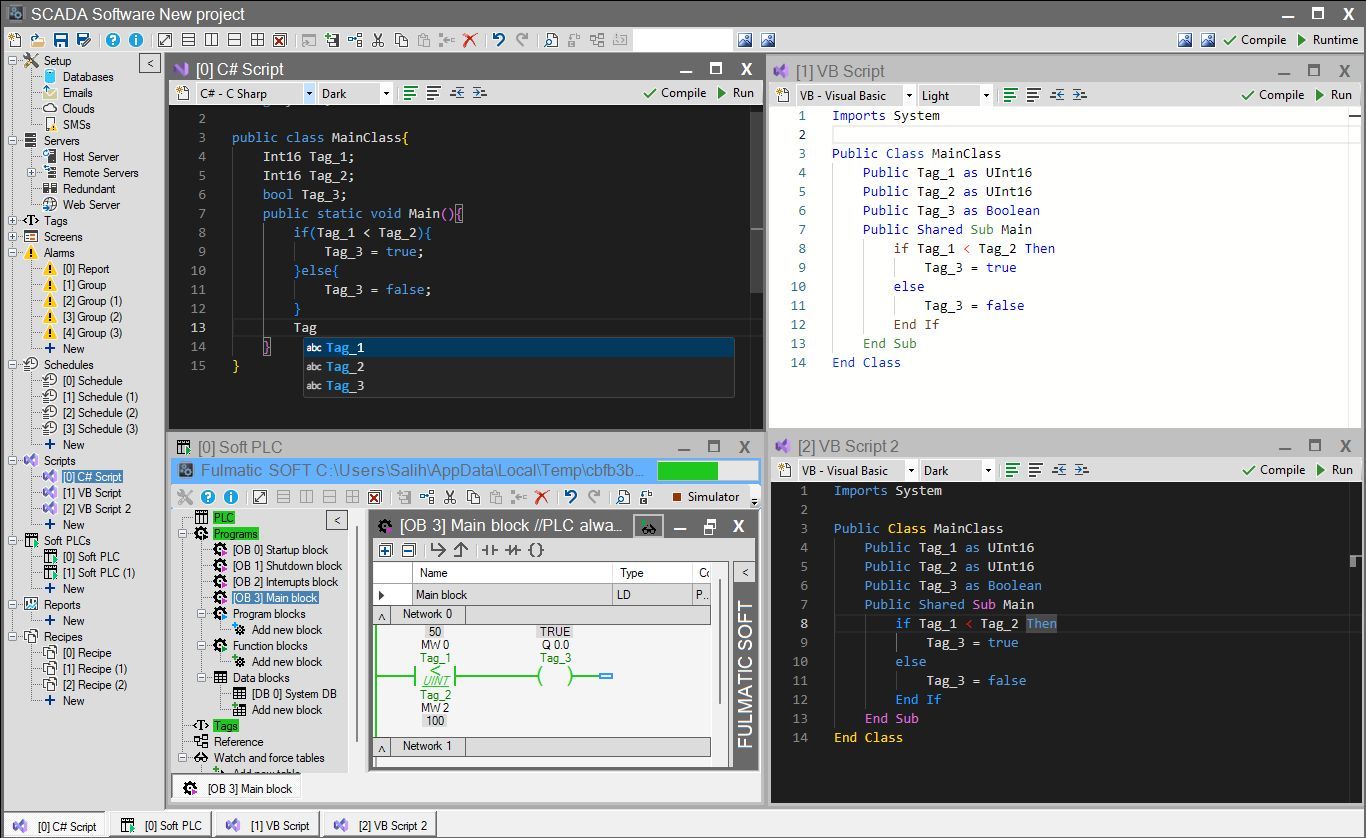

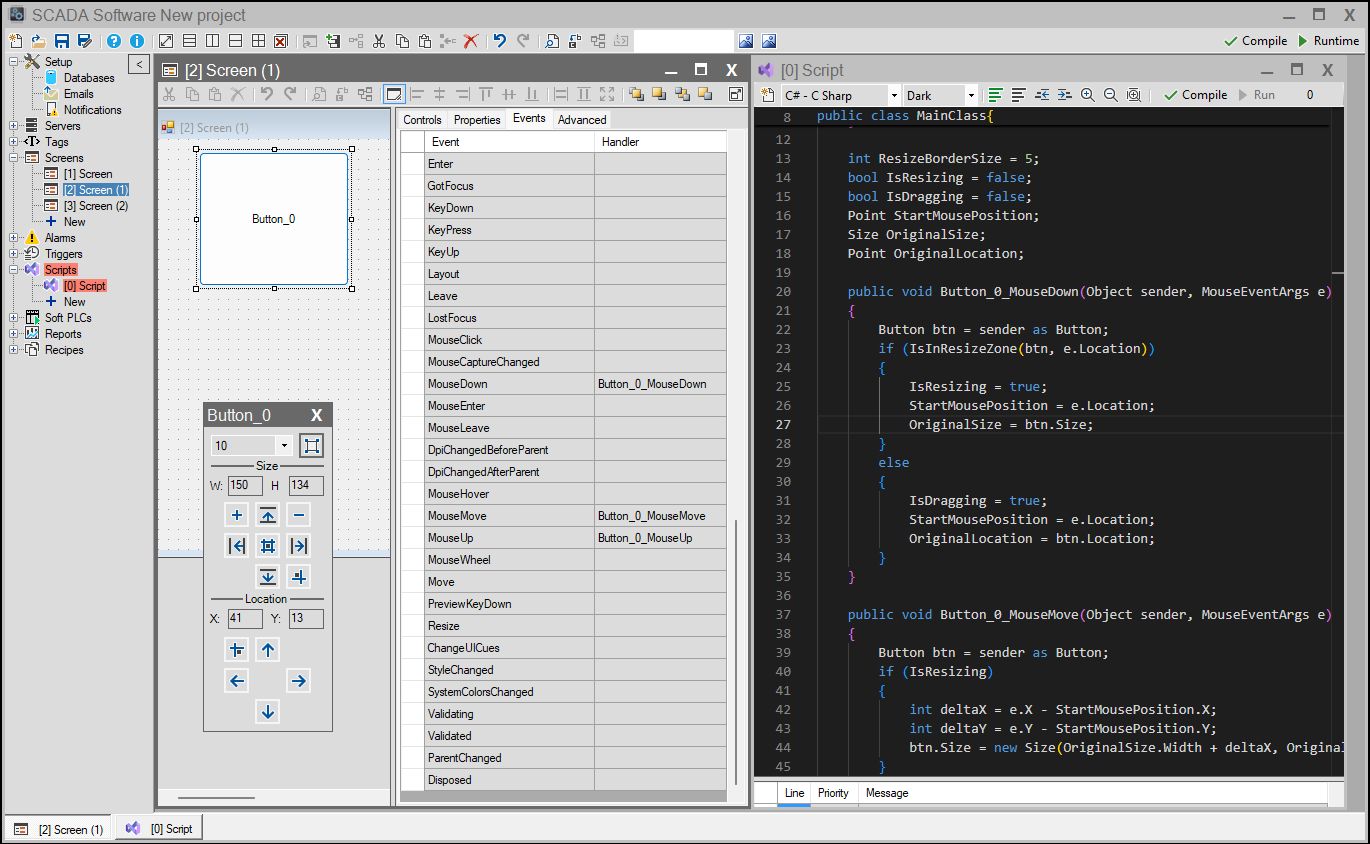

Unlimited flexibility withVisual Basic and C# scripting.

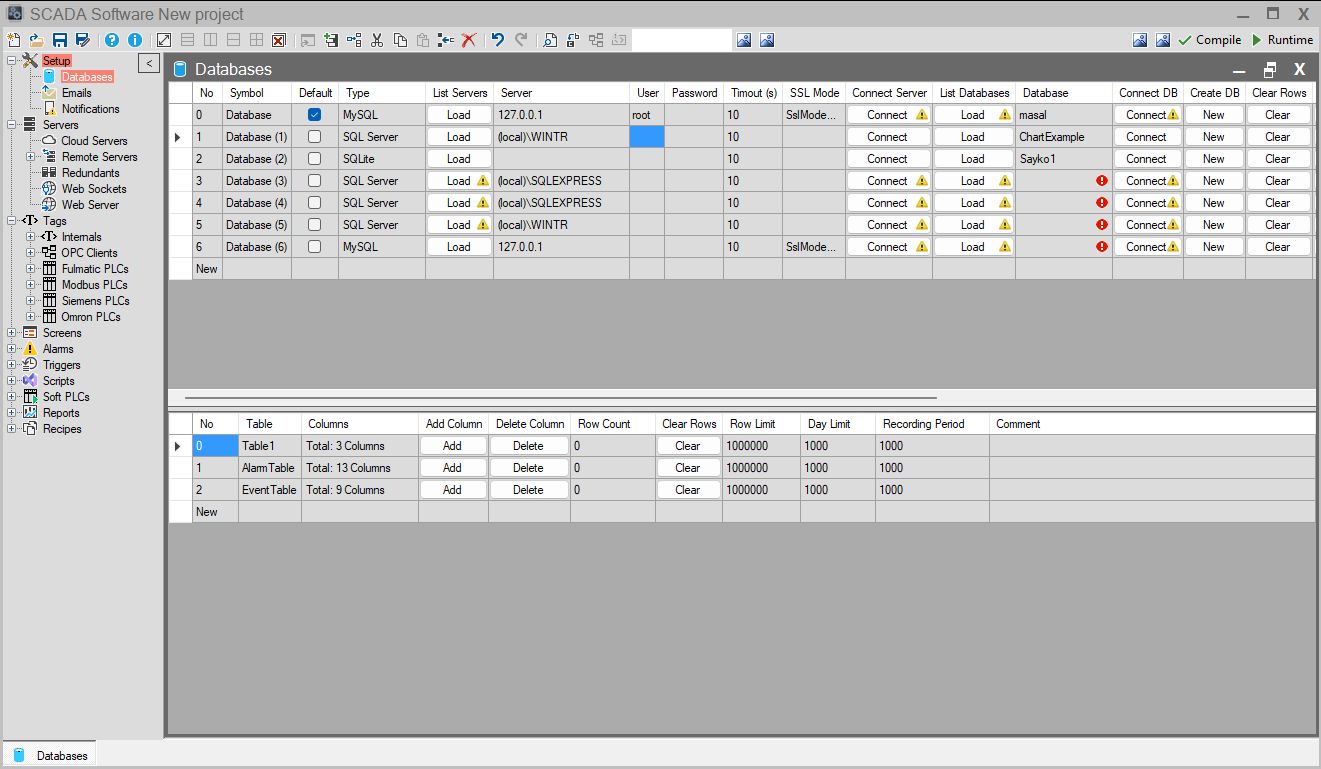

Uses Microsoft SQL Serverfor(2005,2008,2012) databases. Limited 4gb, unlimited table and each table limited 950 Tags.

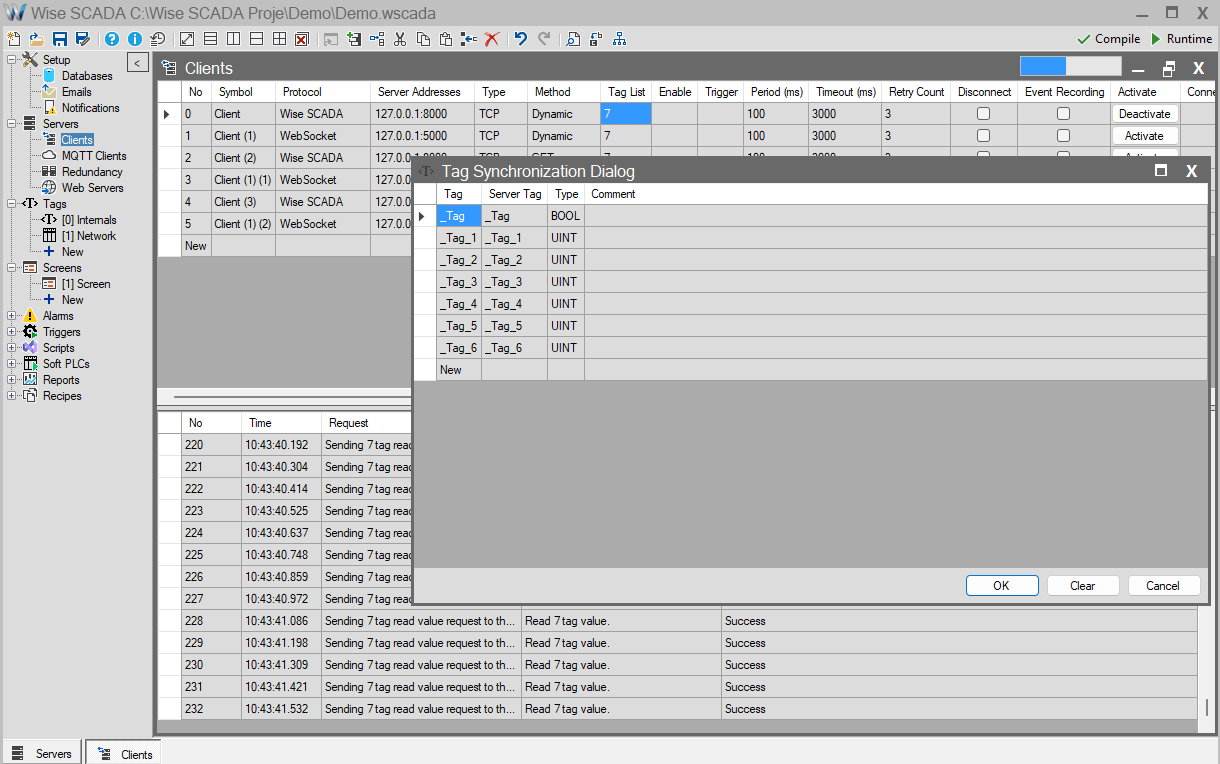

With Server-Client option WinTr stations can be run synchronously through Internet and Screens can be monitored on remote computers by web browsers such as Internet explorer.
- WinTr Scada Software is sold with 3 years free upgrade warranty.
- WinTr Scada Software development is free, runtime and development are sold together.
- WinTr Scada Software users are given indefinite free technical support. (By email other than Turkey)
- You buy WinTr Scada Software license when you deliver your project to your customer after the completing your project. (With Demo license only first symbol of symbol factory can be used.)
- Many other scada softwares are not developed in .NET platform. .NET platform born in 2003. However WinTr Software is developed at .NET 2008. Thus development is very easy. Moreover it is compatible with Windows 7 and other operating systems that will be released. New Operating systems are released .NET framework compatible.
- Many .NET objects that can not be found other SCADAs presented in WinTR. Thus your project get out of Windows 95 look and gets Vista apperiance.
- We are taking to your service 2009 years award winning chart object dundas chart and gauge. WinTr is the only scada software that uses this variation and visuality.
- Reaching Scada variables is very easy with SQL Input/Output tags. You can reach easily with other programs that you developed or internet browsers or excel. Many scada software export data to excel. WinTr can do this too. But the method mentioned here is different. In this method, scada never reaches excel. Excel reaches to scada via excel macro.
- VB and C# scripts are work completely different. Scada softwares has a restrictions at script functions. However Wintr has no restrictions you can perform many operations by writing scripts almost as if developing program on .NET platform.
- It is possible to reach and modify scada informations other than the scada tags with scripts. When such needs occur we provide information our customers freely. We develop needed scripts for our customers some case free some case with fee.
- Scripts are compiled once at first then saved as .Net DLL. Then runs directly. Thus they run faster. Even huge amount operations can run very fast in the script.
- At many scada software, the function number which can be run by a button or other object are limited. However 256 function can be run with WinTr Scada Software Also you can trigger this functions when alarm occured or gone.

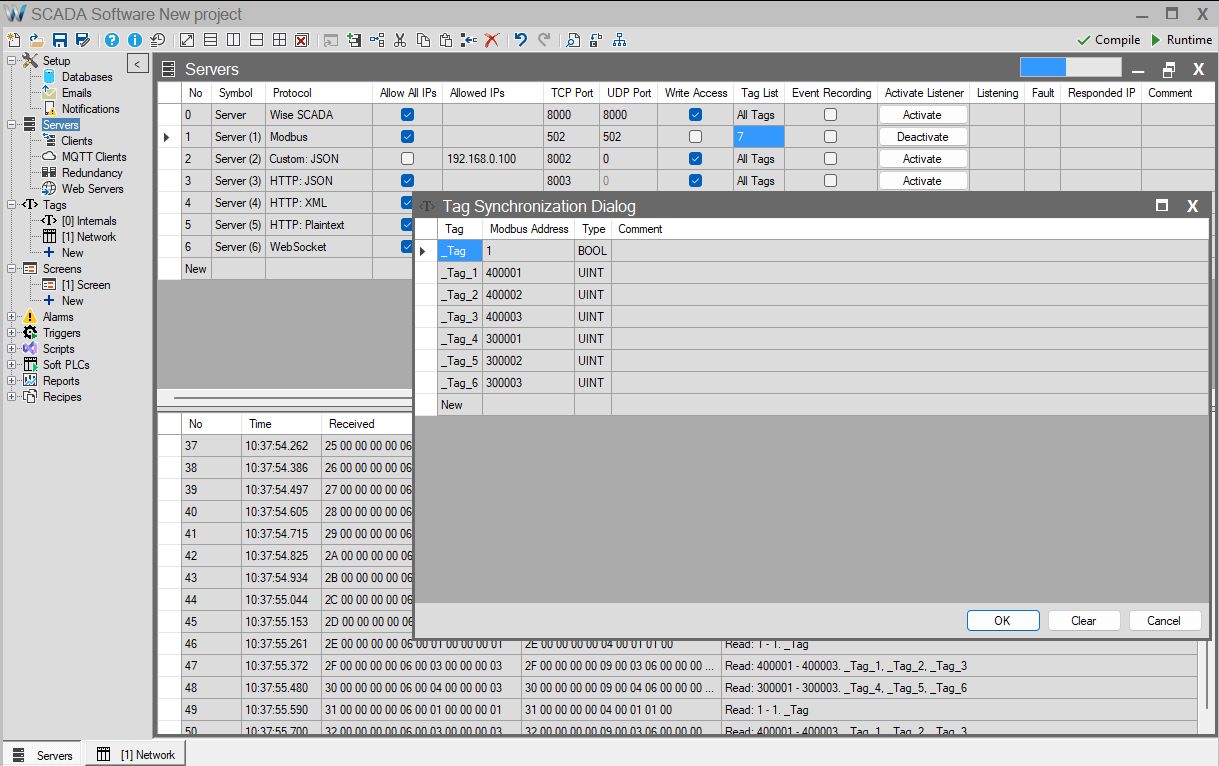

- Thousands WinTr scada may establish full or restricted access to each other via server and client functionality.

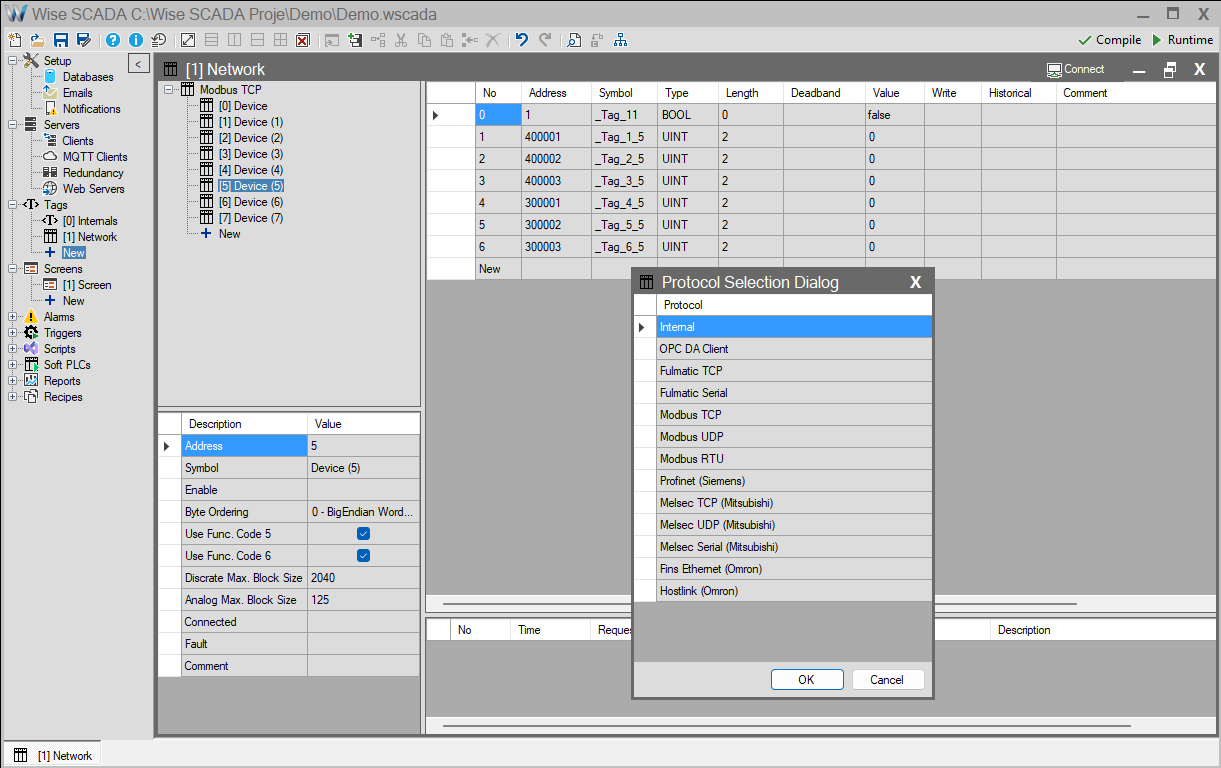

- Can be connected to automation devices via S7 MPI, PPI, Profinet, Host-Link and modbus RTU without OPC server.

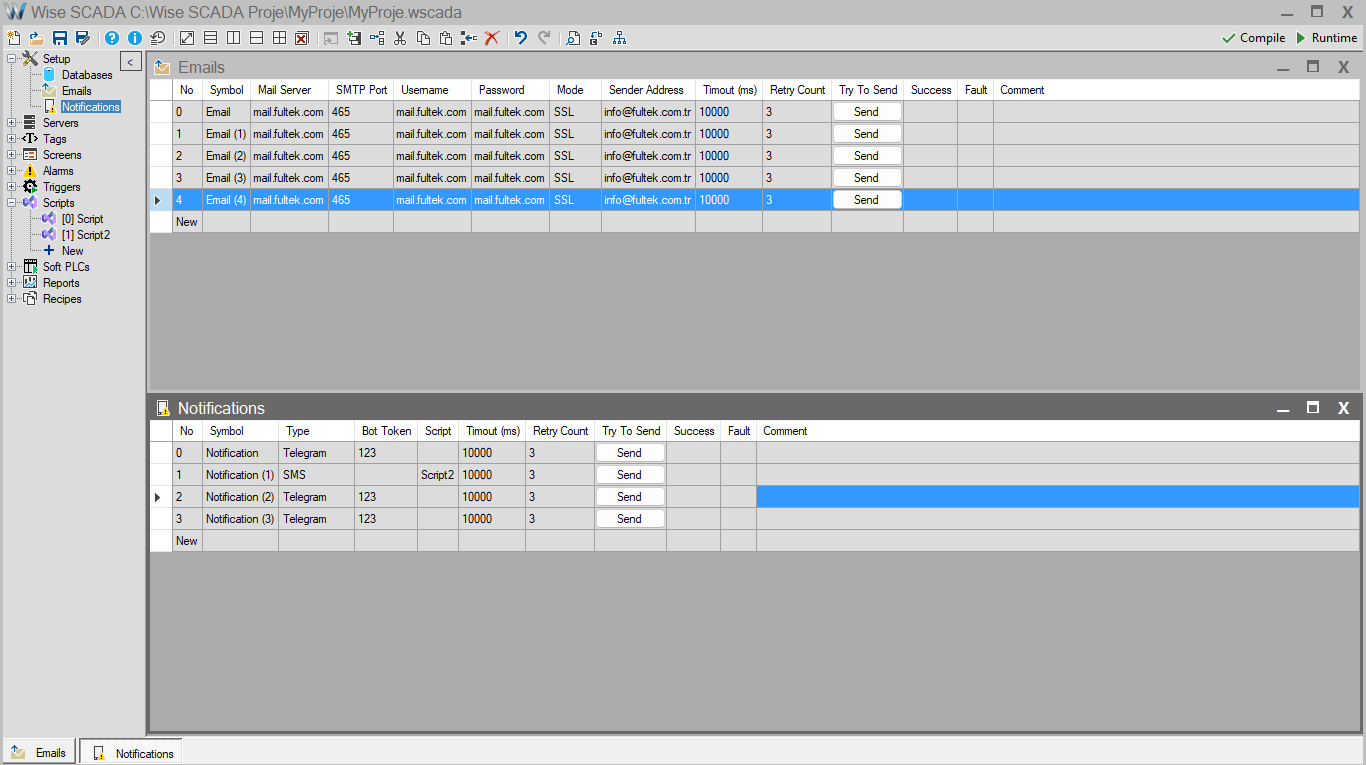

- E-mail and SMS sent when specified conditions occur.
- You can create many different recipe algorithms with categorized recipe.
- Real time data monitoring and control can be done with real time working feature which achieved version 2.0.0
- First going Runtime mode at high number tags may be slow. Then all objects connects each other as interrupt and only works when values changed. Thus you can develop high tag count projects for slow computers. High number means 20000 tag and upper.
- Beside many image file you can use animated gif images in scada pages.
- We present all of this excelent features with low price.
You can see more scada screen pictures click here.
Scada Software Download:
Login Register today! Scada Help Online Scada First Project Video Scada General Features Video Make Reports In Scada Video Print Out From The Scada Video Set Scada As Server & Client Video Web Server Features Of Scada Video
You Tube: How to make first scada project ? , Scada general features , How to make reports in scada? , How to get print out from the scada? , How to set scada as server & client? , How to use web server feature of scada?
Model & Price
|Development & Runtime||Yes||Yes||Yes||Yes|
|Realtime & Historical Trend||Yes||Yes||Yes||Yes|
|.Net Component Object||Yes||Yes||Yes||Yes|
|Vb & C# Script||Yes||Yes||Yes||Yes|
|Database Support (4 gb.)||Yes||Yes||Yes||Yes|
|Plc Communication Driver||Yes||Yes||Yes|
|WinTr Server & Redundant||Yes|
|Web Server (Limited*)||Yes|
|ActiveX, Dll, .Net component Support||Yes|
|64||128 Usd.||228 Usd.||478 Usd.||728 Usd.|
|128||256 Usd.||356 Usd.||606 Usd.||856 Usd.|
|256||512 Usd.||612 Usd.||862 Usd.||1112 Usd.|
|512||768 Usd.||868 Usd.||1118 Usd.||1368 Usd.|
|1024||1024 Usd.||1124 Usd.||1374 Usd.||1624 Usd.|
|2048||2048 Usd.||2148 Usd.||2398 Usd.||2648 Usd.|
|8192||4096 Usd.||4196 Usd.||4446 Usd.||4696 Usd.|
- If you needed special DISCOUNT, send email please. Contact
Dongle price 25 Usd.
- Upgrading price is amount of the difference between new licence and current licence. With new version licence upgrade is processed by the application that arranged for you. These application’s price is 50 usd.

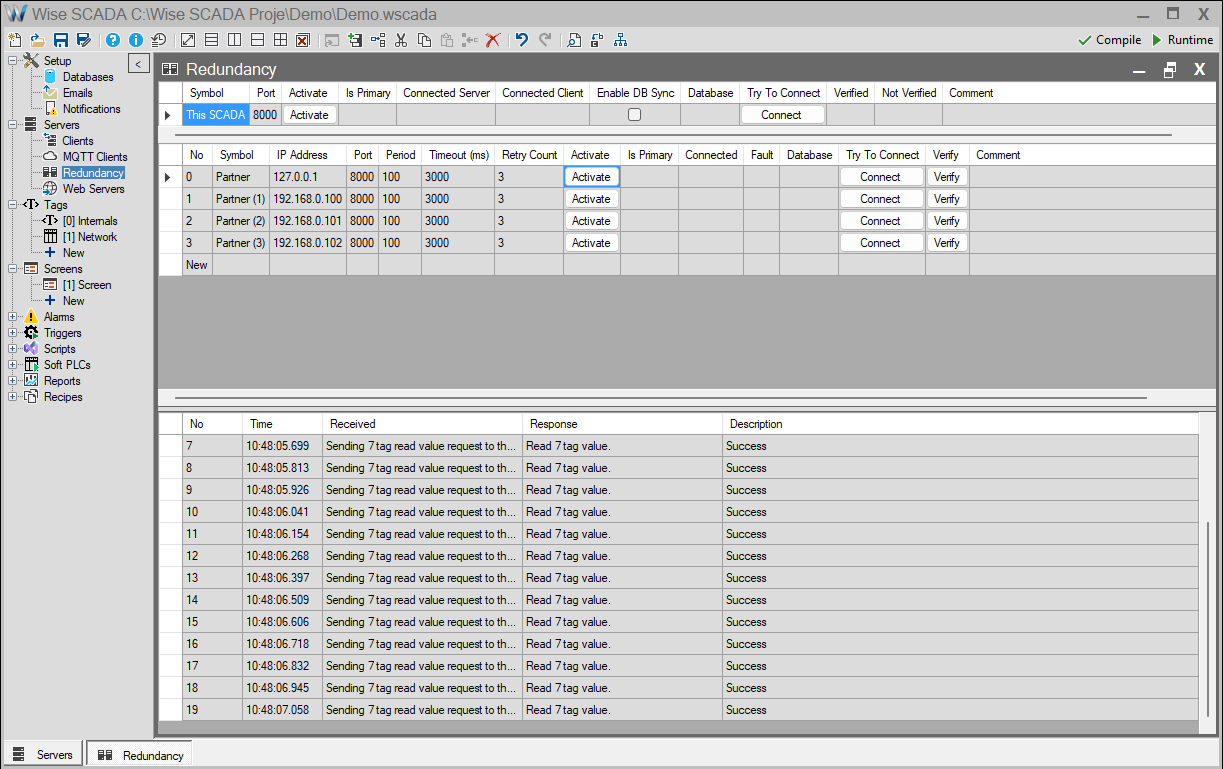

- You need a two identical(same configuration) licence for fully backed up working of two computer(redundant). Client-Server architecture is different than Redundant system. Client reads tag value from the server. The 64 Tag client can read all values of 65534 tag server. On the client side tags which read from server are considered as ‘internal’ tag. On the other hand redundant system works one on one synchronize. If one computer disabled all operation taken on the other computer.
Scada Software Tutorial Video: How to make first scada project?Read more
WinTr Scada Systems version 5.0.0 feature:
1. All Scada System functions upgraded, tested and performances increased. Many Scada System features updated unlimitedly.
2. Shutdown command added. Operators can shutdown the Scada System completely with this command without exposing the development page.
3. The feature that allows running projects on the small screens which intended for bigger screens has added.
4. Multiple Screen Designer has added which allows working on multiple screens simultanously.
5. Screen Designer performance increased. Copy/Paste feature updated. Object moving speed increased.
6. Second runtime function has added for allow to work on the development while Runtime active.
7. Properties window added for accessing all functions of Chart and Gauge.
8. At runtime the feature of inserting and removing series to the chart has added.
9. The feature which shows serie value when mouse over has added.
10. Operator event list has added. It saves all operator actions at runtime. Records can be accessed by Report Module and Eventview object. Eventview object has two mode as local and remote. It shows another scada project’s records when it remote. You can make records more understandable using tooltips on page objects.
11. Hidden button feature added. You can create invisible buttons by using these buttons as a invisible.
12. ActiveX and .Net component feature added. You can use 3rd party softwares in the Scada System. It is very important feature. You can create your own objects if scada objects are not capable. You can bind object’s all Event, Property and Methods to tags. We are developing objects for the customers. Please ask for required objects. We’ll set up a site for the objects soon.
13. Column names of the Recipie and Alarm objects now can be modified.
14. Alarms has added to database. All alarm events recording to the database. You can reach alarm data via report module. Database search and data fetch functions has added to Alarmview.
15. Alarms can be examined according to another tags as well as constants.
16. Sound recording function has added. Recorded sounds or sound files can be called as a function. These sounds can be played when alarm occurred or when it gone.
17. Alarm print function has added. The alarm can be printed as a line by line or just it’s selected part when it is occurred or when it gone.
18. Alarm Acknowledge function can be run according to date time value. Thus alarm occurence time can be recorded.
19. Runtime performance increased. Page changing performance increased CPU usage reduced.
20. Report module upgraded. Asynchronize report module prevents slowing the scada when getting big reports.
21. Reports can be work which are located on close screens.
22. Excel file can be created for the all functions even excel not installed on the computer.
23. Multiple selection function has added for Tag list.
24. The function for exporting and exporting tag list to excel has added. With this feature tags can be created much faster at big projects. You can write explanation files for the Scada System Tags.
25. Tag calibration function added. You can create many copy of the scaled main tag. Each one can have different scale value. Main tag’s value changes when value changed at scaled copy.
26. Opc client module remade. Can connect to all opc server versions.
27. Database Timeout can be modified.
28. Database default Server name, user name and password can be changed.
29. Database unlimited table usage feature added. Any tag can be recorded to any table.
30. Server Client performance incresed. Now regular computer can send 10000 tag value to 10 client. Unlimited client can connect to server. One client can connect 1000 different server.
31. Allowed client IPs feature added for the server. Other IP connections rejected. All IP adresses can be allowed as well.
32. The Client event list added which works according to selection. Client data that changes the server’s tag recorded to database. Thus it can be recorded that which client changed tag value.

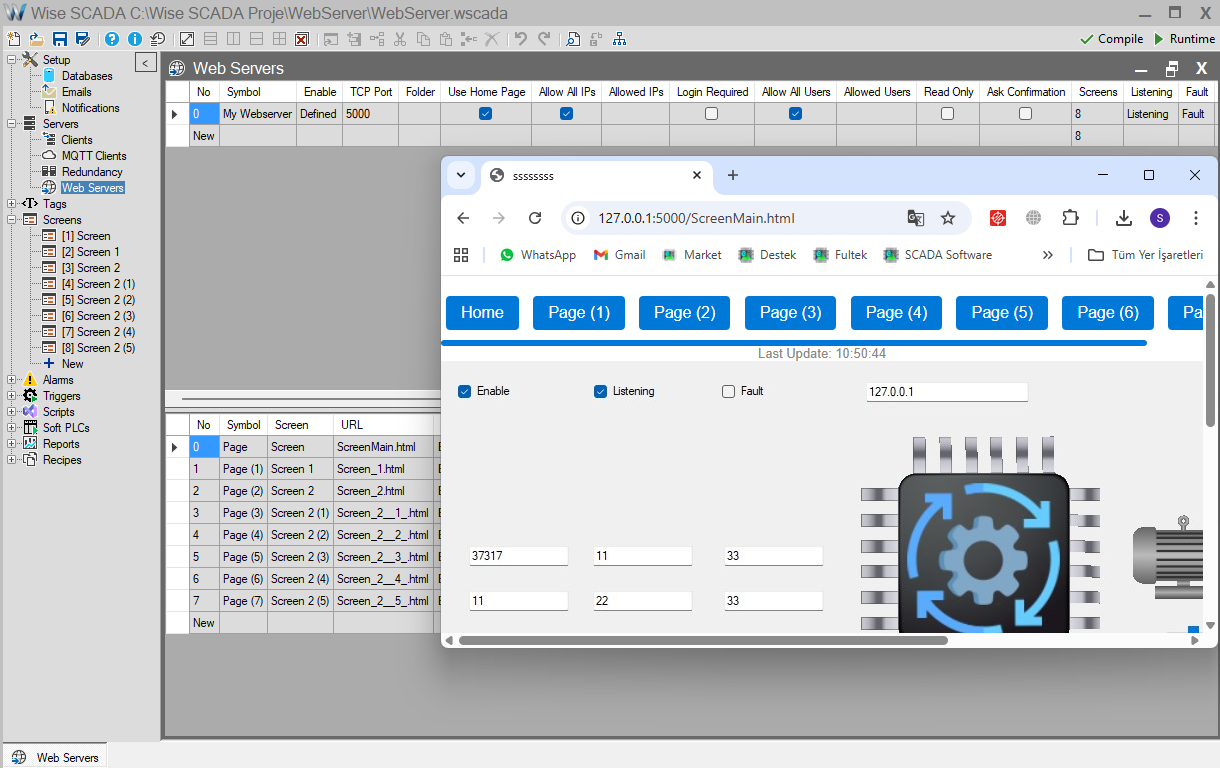

33. Webserver protected by username and password. It’s performance increased also.
34. Webserver and popup screen numbers increased unlimitedly. Computer performance is the only limitation.
35. Two new type sms sending method added. You can send sms via Skype or Script. You need a membership from the companies that sends over servers if you send it via script.
36. You can work on multiple scripts simultaneously. It is only required create a new script writer.
37. Scripts are used to work synchroniously. Now it works asynchroniously. Because of the huge operations, another programs, hardware issues long time taking scripts can be used safely.
38. Two array added for accessing tags from the scripts. TagNameTable, TagValueTable. These arrays gets tag’s name and tag’s value. The value that written to TagValueTable array is written to Tag.
39. 10 objects added for moving objects between Scripts. WinTrScadaObject_1– WinTrScadaObject_10. You can bind scripts with these objects. For example you can move and read/write the serial port that opened in script 1 to script 2. Object count looks like limited to 10 but it is unlimited. You can put millions object within one object via ArrayList function. Many advantages can be gained by using it with ActiveX functions. For example the objects that created by script like form and all objects can be placed in Scada System pages.
40. Access of group values of the Plc communication objects within the script allowed. Thus group values can be changed while plc’s communicationg at runtime. For example in a system that contains many energy analyzer we can read instant current, voltage data rapidly for each analyzer and read other values once in a hour. We can read values rapidly when one analyzer selected read others slowly. Thus we can modify tag access speed according selected page.
41. At Modbus RTU/TCP-IP Master modul if the station cannot be read for the first time it may skip next time according to selection. Thus closed stations will not slow the network.
scada systems,scada systems pdf,scada systems pps,scada systems for dummies,scada systems training,scada systems vulnerabilities,scada systems basicsRead more
Free Scada | Scada Freeware
Free Scada – Scada Freeware
What is a Scada System
What is a Scada System
SCADA (supervisory control and data acquisition) could be a class of software system computer program for method management, the gathering of information in real time from remote locations so as to manage instrumentality and conditions. SCADA is employed in power plants also as in oil and gas refinement, telecommunications, transportation, and water and waste management.
SCADA systems embrace hardware and software system elements. The hardware gathers and feeds information into a laptop that has SCADA software system put in. the pc then processes this information and presents it during a timely manner. SCADA conjointly records and logs all events into a file keep on a tough disk or sends them to a printer. SCADA warns once conditions become venturesome by sounding alarms.
